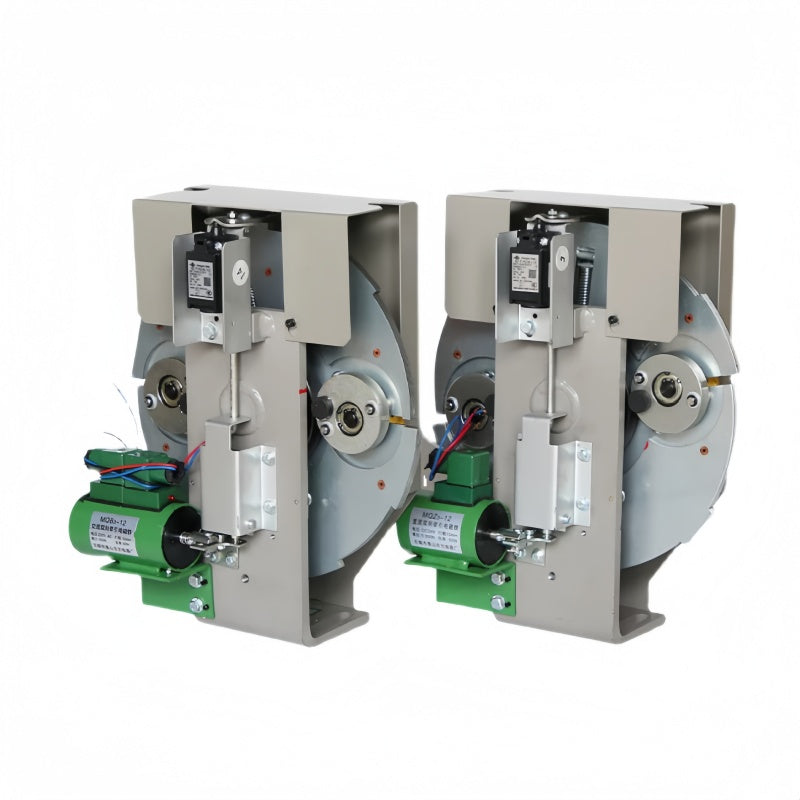

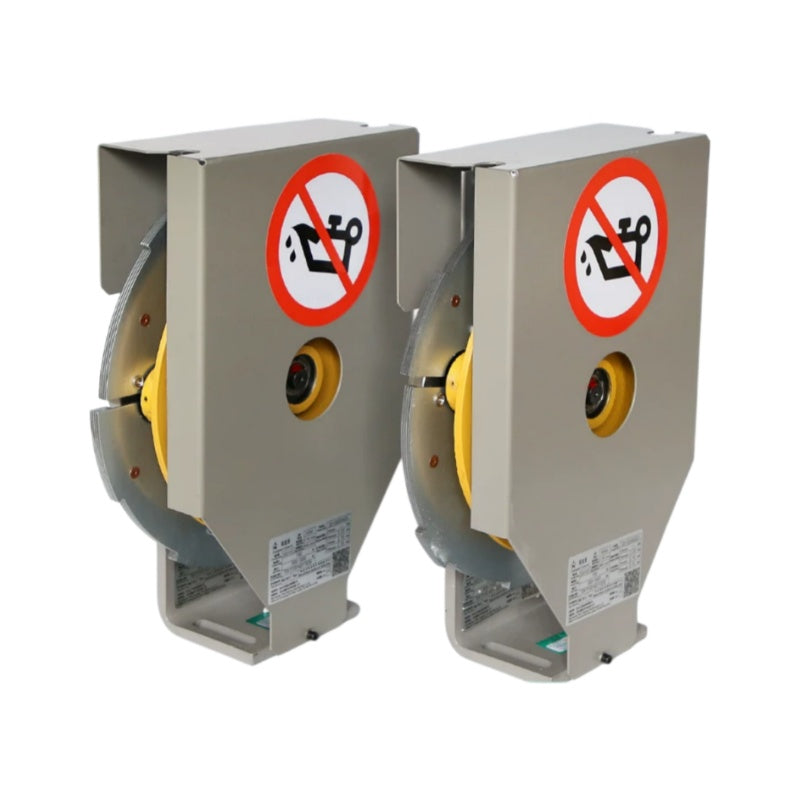

XS9C Elevator Overspeed Governor Speed Limiter – Lift Safety Parts

XS9C Elevator Overspeed Governor – Speed Limiter

The XS9C is a precision-engineered overspeed governor (speed limiter) designed for traction elevators. It continuously monitors car speed and triggers the safety gear mechanism the moment the elevator exceeds the rated speed, bringing the car to a safe stop. A critical safety device compliant with international elevator safety standards.

Key Features

• Model: XS9C
• Rated Speed Range: 1.00 m/s – 1.75 m/s (standard); other speeds available upon request

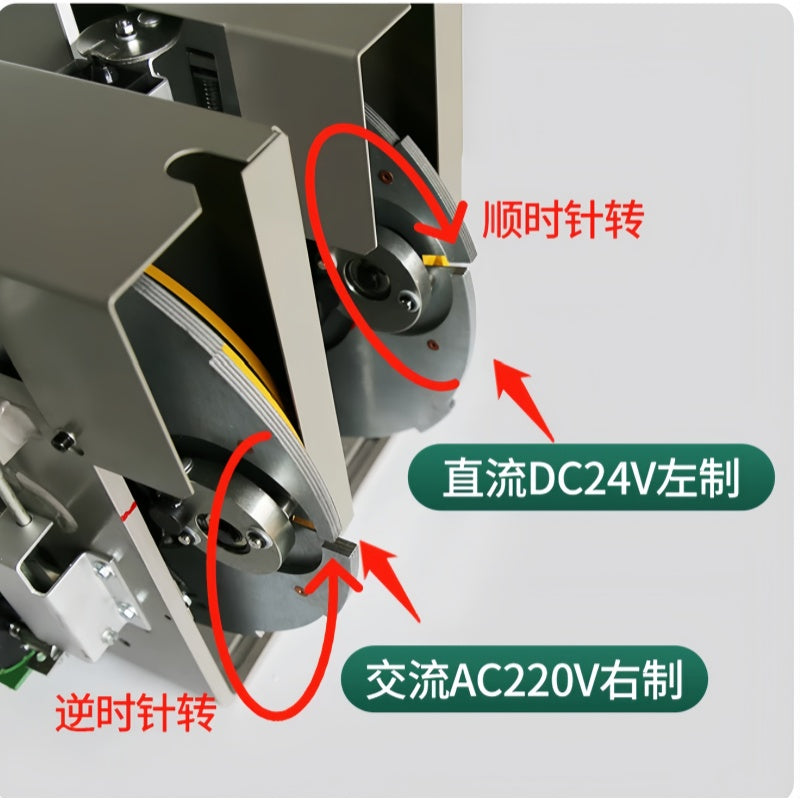

• Voltage: 24V DC / 220V AC (two options available)
• Triggers safety gear activation upon overspeed detection
• High sensitivity and reliable tripping mechanism
• Compact design, easy installation and maintenance
• Compliant with EN 81-20 / GB 7588 elevator safety standards

Specifications

• Model: XS9C
• Rated Speed: 1.00 m/s – 1.75 m/s (standard)
• Custom Speed: Available upon request
• Voltage: 24V DC or 220V AC
• Application: Traction elevator overspeed protection
• Standard: EN 81-20 / GB 7588
• Origin: China

Applications

Suitable for traction elevators in residential buildings, commercial complexes, hotels, hospitals, and other facilities requiring reliable overspeed protection.
